Wednesday, June 13, 2007


Today I made my own hackle! For the none-fiber-processors out there, a hackle is a device used to comb fibers. In my particular case, I am interested in using it to blend already-dyed combed tops to create a custom color blend. First, I saw an article in Spring 2007 Spin-Off about using a hackle to blend colors and different fibers. Then, over at the knittyboard, Clotho42 shared her own home-made hackle. So I went off to the dollar store and the big box craft store and I bought these ingredients:

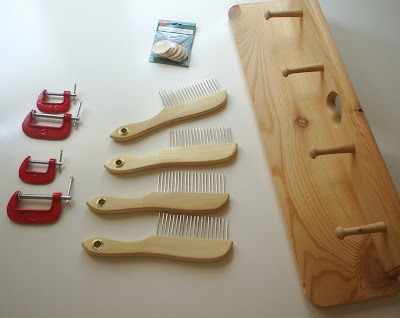

Two sets of clamps ($2.50), four large dog combs ($5.00), one 24" shelf ($9.99), one pack of wooden disks ($0.99). The truly frugal would make their own shelf with wood scraps, but I decided the saved work was worth the extra payout. I'm a horrible woodworker, so I take shortcuts where I can find them. Total payout: $18.48. Oh yeah, the clamps and the dog combs, although purchased at the DOLLAR store, were actually $1.25 each. Yeah, my dollar store is a big rip-off.
At home, I had: a saw, sandpaper, a power drill, assorted drill bits, and eight screws that were long enough to join the combs to the shelf, but not long enough to poke out the back. I had to mix and match, because I'm not that picky. Oh, and I had some safety goggles. Safety is very important, especially when working with power tools.

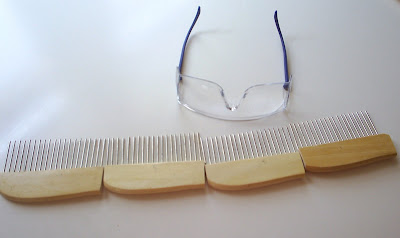

First, I trimmed the combs. I stuck them in the vise and sawed the ends off, then I sanded the rough edges with the sandpaper. Next, I positioned the combs along the bottom edge of the shelf. I tried to align the comb tines as well as I could, but I didn't stress too much over it. A few pilot holes drilled, a few screws screwed in, and a couple of clamps later and I have this:

And here it is loaded with some combed Corriedale:

I drilled some different-sized holes in the wooden disks and pulled the fiber off through the diz:

This small sample yielded three little rovings and some waste. I can't spin it up for the final step yet because I have to wait for my bobbin to dry. Because the other thing I did today was paint my wheel:

Yep, a real DIY kind of day!
